| Max. työntö voima | 200 kN |
| Max. veto voima | 250 kN |
| Sylinterin isku | 280 mm |
| Max. työntö nopeus | 2 rpm |
| Max. Vääntö | 3,800 Nm |
| Max. pyöritys nopeus | 60 rpm |
| Max. hydrauliikan paine | 250 bar |

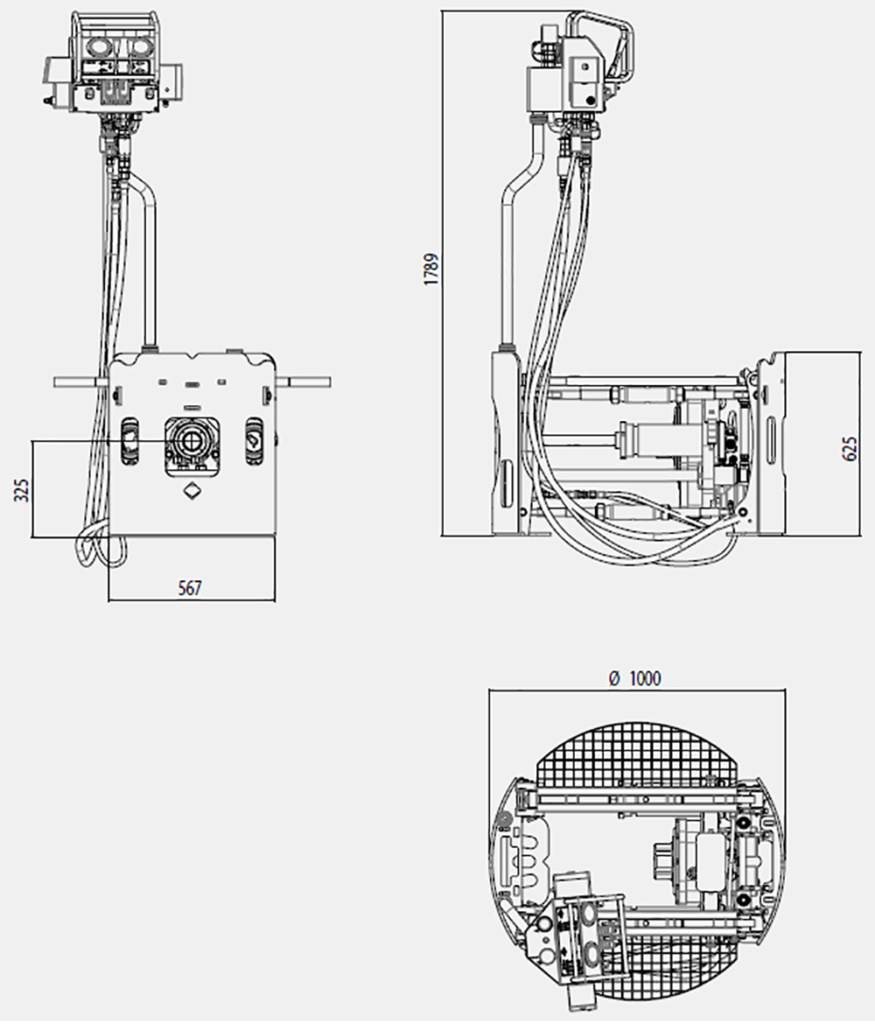

| Pituus x leveys x korkeus | 960 x 567 x 625 mm |
| Paino | 395 kg |
| Axis height / axis height with steel frame application (pit launch) | 325/375 mm |
| Launch manhole (circular manhole) | Ø 1,000 mm |
| Length launch pit | 1,200 mm |
| Length target pit | 1,000 mm |
| Effective length pilot rods | 450 mm |
| Diameter pilot rods | 82.5 mm |
| Retrievable pipe / product pipe length | ≥ 450 mm |
| Max. putken ulkohalkasija | 280 mm |
| Max. porauspituus (riippuen maaperästä) | 25 m |
